Product Overview

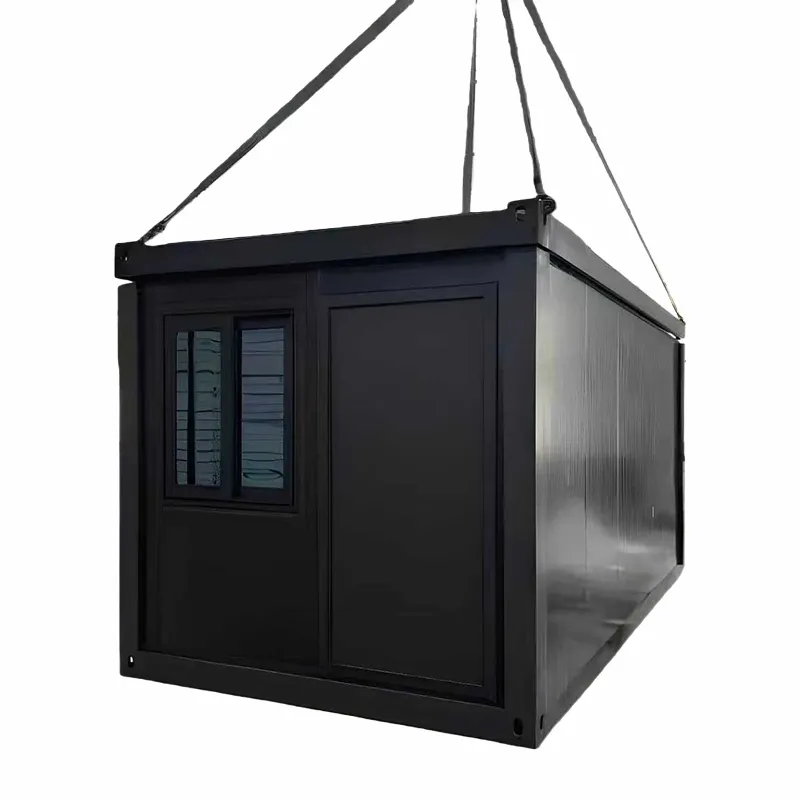

The Folding Container Farm House is a foldable modular agricultural housing unit designed for temporary accommodation in farming environments where mobility, durability, and seasonal redeployment are required.
Core Product Specifications
|
System Category |
Specification Item |
Engineering Data |
|
Product Identity |
Model |
AG-F Series Folding Container Farm House |
|
Product Type |
Modular Foldable Agricultural Residential Unit |
|
|
Application Design |
Farm-oriented structural system for mobile agricultural housing |
|
|
Structural Performance |
Load-bearing frame |
Q345 high-toughness steel structural system |
|
Wind resistance |
Up to 165 km/h (open farmland / mountain terrain conditions) |
|
|
Seismic resistance |
Grade 7 seismic adaptability (low-intensity rural regions) |
|
|
Service Performance |
Design service life |
16 years under standard agricultural operation conditions |
|
Folding cycles |
≥25 deployment cycles validated structural durability |
|
|
Deployment Efficiency |
Installation method |
Tool-free assembly system |
|
Workforce requirement |
2-person deployment operation |
|
|
Dimensions & Logistics |
Expanded size |
5200 × 3100 × 2850 mm (22㎡ usable space) |
|
Folded size |
2400 × 1450 × 1850 mm (fits rural transport vehicles) |
|
|
Material System |
Main structure |
Q345 steel frame + agricultural-grade anti-corrosion composite panels |
|
Compliance Design |
Safety & indoor use |
E0 low-emission interior material system |
Standard & Optional Configurations
Standard Setup
· Q345 steel folding frame + composite panels
· Anti-slip floor + insect-resistant interior
· Bed + table + chairs
· Tool storage cabinet + shelves
· Kitchen (220V cooker + 40L tank)
· Safety (fire extinguisher + smoke detector)
· Electrical (waterproof sockets + USB + wiring)
Optional Upgrade Modules
Climate Adaptation
· 90mm insulation (down to -28°C)
· Sunshade system (up to 42°C)
Agricultural Functionality
· Grain storage (100kg)
· Feed mixing table
Off-Grid Support
· Solar panel (120W) + battery (55Ah)
· Rainwater system (80L)
Livestock Use
· Feeding system
· Odor-proof storage
Tool Expansion
· Wall rack
· External storage shed
Application Scenarios
Commercial Farming Accommodation
Used for seasonal worker housing during planting and harvest cycles in large-scale agricultural operations.
Orchard & Plantation Operations
Suitable for citrus, mango, vineyard, and mixed crop plantations requiring temporary but stable worker housing.
Livestock Farm Housing Units
Provides on-site accommodation for farm staff in remote livestock production environments.
Remote Agricultural Projects
Applicable in mountainous, desert-edge, or low-infrastructure farming zones where permanent construction is inefficient.
Emergency Rural Deployment
Temporary housing solution for agricultural recovery or disaster response operations.
Quality Control & Manufacturing System
Manufacturing Capacity
· Annual output: 28,000+ modular units
· Industrialized production line system for folding container structures
· Standardized assembly and structural welding processes
Quality Testing System
(1)Impact Resistance Test
· Simulated mechanical impact from agricultural machinery (e.g., tractors, field equipment)
(2)Anti-Corrosion Test
· 1200-hour exposure to fertilizers, pesticides, and high-humidity conditions
(3)Folding Cycle Test
· 25-cycle repeated folding and deployment validation for structural durability
(4)Waterproof Performance Test
· Simulated heavy rainfall conditions up to 200mm/day for monsoon and outdoor deployment scenarios
Compliance & Standards
ISO 9001 Quality Management System
CE (Compliant with EU Safety & Environmental Standards)
GB 8624-2012 Class A Fire Safety
E0 Grade Low-Formaldehyde Certification (for indoor air quality)
Customer Case: Yunnan Mango & Citrus Orchard (2024)
Project Type: Agricultural seasonal worker housing deployment
Location: Yunnan, China
Scale: 1,200 acres orchard / 150 workers
Project Challenge
Housing required for 150 workers within 3 days
High rainfall monsoon environment
Traditional brick shelters require 5+ days construction
No mobility for multi-zone orchard operations
System Solution
50 × Folding Container Farm House units
40 × Standard 3-person units
10 × Units with integrated tool storage modules
Deployment Performance
Installation completed in 2 days
Deployment workforce: 15 teams (2 workers per team)
Environmental resistance:
Rainfall: Up to 150 mm/day
Wind: Up to 135 km/h
Structural result: No deformation or functional failure reported
Operational Outcome
Housing cost reduction: ~55% vs traditional brick structures
Fully reusable across seasonal agricultural cycles
Relocation and redeployment completed within 7 days
Improved on-site tool organization and operational efficiency
Procurement Value Indicators
Rapid deployment for seasonal agricultural labor housing
High resistance performance for monsoon climate conditions
Reusable modular system for multi-location farming operations
Client Feedback
The system moves with our harvest cycles and eliminates repeated temporary construction.
