Product Overview

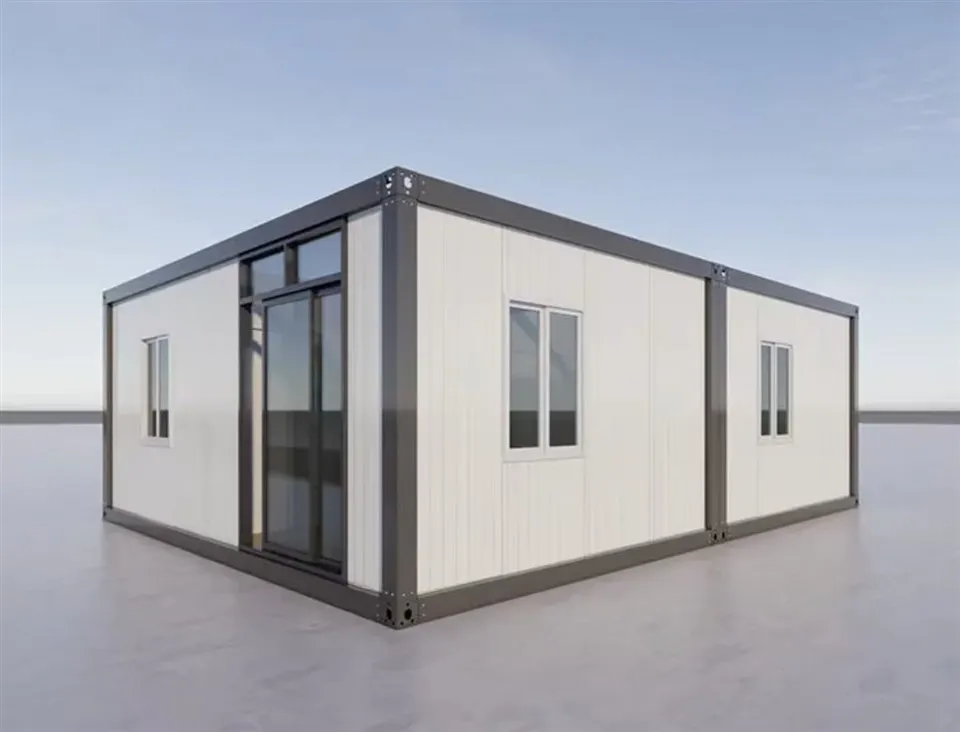

20ft Flat Pack Container is a modular steel container house with a galvanized steel frame and insulated wall panels. Designed for fast assembly, easy transportation, and repeated relocation, it is widely used for labor accommodation, offices, security rooms, clinics, classrooms, and temporary project facilities.
Product Parameters
|
Category |
Specification Details |
|
Name |
20ft flat pack container house |
|
Size |
20 feet (6000×2480×2500mm) |
|
Frame |
Galvanized steel (2.0–3.0mm thickness) – ensures structural strength and corrosion resistance |
|
Wall |
Galvanized sheet outer layer; interlayer: rock wool/polyurethane foam (optional);Exterior decoration: metal carved plate, galvanized sheet, aluminum-plastic plate, aluminum plate (optional) |
|
Ground |
Base: Square steel + galvanized steel plate + MGO board + cement fiber board + PVC board;Interior finish: Composite wood flooring, floor leather (optional) |
|
Doors & Windows |
Aluminum-plastic or thermally-broken aluminum (optional for better insulation); entrance door: KFC Gate (durable and easy to maintain) |
|
Bathroom |
Equipped with PVC/PP water pipes, toilet, washbasin set, and tempered glass shower door |
|
Internal Circuit |
Main line: 4mm²; branch lines: 2.5mm² (for sockets) / 1.5mm² (for lighting);Accessories: 16A sockets, five-hole sockets, leakage protection device |
|
Power System |
Control boxes, protectors, sockets, switches, and LED interior/exterior lighting |
|
Core Functions |
Insulation, cold protection, windproof, waterproof |
|
Fire Rating |
Class A (meets national fire safety standards) |
|
Country of Origin |
Shandong, China |
|
Brand |
Aoborui |
Key Benefits
Galvanized steel structure provides corrosion resistance and long-term structural stability.

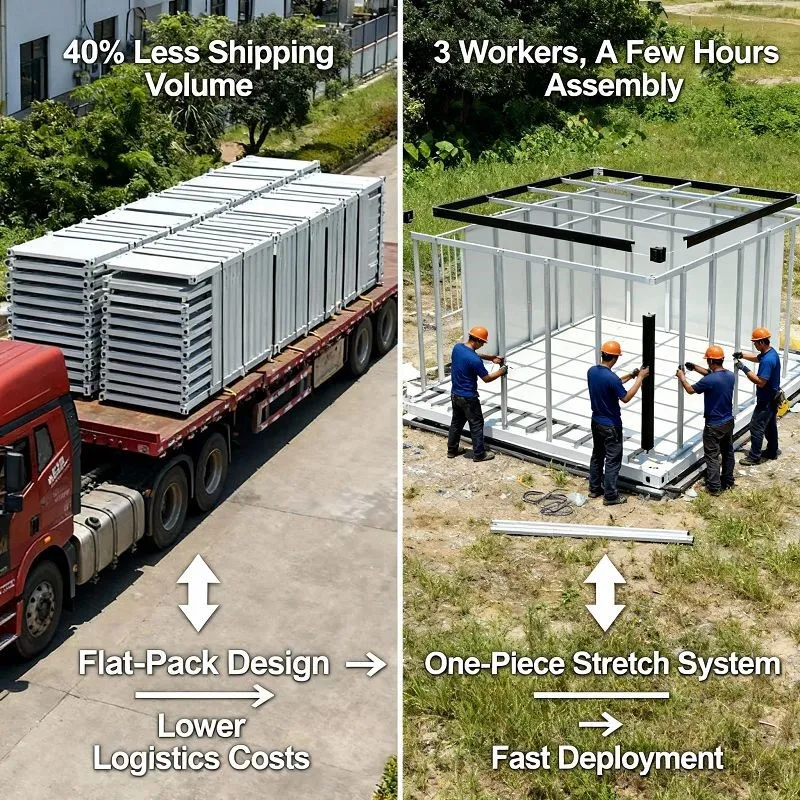

Fast installation requires no welding, reducing labor costs and project downtime.
Modular construction allows easy expansion, relocation, and future modifications.
Thermal insulation improves indoor comfort in different climate conditions.
Typical Applications
Construction Site Office – Provides temporary office space for project management and engineering teams.
Worker Accommodation – Serves as comfortable living quarters with optional bathroom and kitchen facilities.
Mining Camps – Creates modular accommodation and service buildings for remote mining operations.
Disaster Relief Housing – Offers rapid-deployment emergency shelters after natural disasters.
Security Guard House – Functions as entrance control rooms for factories, warehouses, and residential communities.
Temporary Medical Clinic – Can be configured as first-aid stations or mobile healthcare units.
Education Facilities – Used as temporary classrooms, training centers, or campus extensions.
Commercial Kiosk – Suitable for modular retail shops, ticket offices, and exhibition booths.
Configuration & Optional Features
Standard Features
Basic Living/Working Support: Toilet, washbasin set, curtains, insulation layer, windproof/waterproof treatment.
Essential Systems: Interior/exterior LED lighting, complete electrical system (switches, sockets, leakage protection), PP water supply pipes, PVC sewer pipes, and basic water treatment.
Optional Features
|
Category |
Optional Items |
|
Decoration |
Fine interior decoration, integrated bamboo fiber wall panels, artificial stone veneer, tempered glass bathroom partitions |
|
Appliances |
Shower, electric heater, smart lock, sofa, coffee table, TV cabinet, double bed, nightstands, refrigerator, TV |
|
Kitchen & Climate |
Integrated kitchen (sink, stove), central air conditioning, wall-mounted air conditioning |
|
Special Functions |
Solar power system, dehumidifier, anti-theft alarm, foldable outdoor terrace (adds 8–10㎡ space) |
Customization Options
|
Customization Item |
Description |
|
Size |
Custom dimensions and multi-unit modular layouts available. |
|
Interior Layout |
Customize room arrangement, partitions, and functional areas. |
|
Exterior Color |
Frame, wall panels, and decorative finishes can match corporate or project requirements. |
|
Insulation Grade |
Select insulation thickness and core material based on local climate. |
|
Door & Window Layout |
Adjust quantity, position, dimensions, and opening direction. |
|
Electrical Configuration |
Customize voltage, socket standards, lighting layout, and distribution system. |
|
Plumbing Layout |
Modify bathroom and water supply arrangement according to project needs. |
|
Branding |
Add company logo, signage, and customized exterior graphics. |
Quality Control
Incoming inspection of galvanized steel, sandwich panels, flooring, and electrical components.
Steel frame dimensional accuracy inspection before fabrication.
Welding quality inspection for structural connection points.
Surface treatment and coating thickness inspection.
Wall panel flatness, thickness, and insulation material verification.
Electrical continuity, insulation resistance, and leakage protection testing.
Plumbing pressure and drainage leakage testing.
Door and window alignment, sealing, and operational testing.
Finished product dimensional inspection.
Final assembly verification and packaging inspection before shipment.
Packaging & Shipping
|
Item |
Details |
|
Packaging Method |
Flat-pack structure wrapped with waterproof PE film; loose components packed separately in labeled cartons. |
|
Container Loading Quantity |
Up to 8–10 units/40HQ (depending on final configuration). |
|
Shipping Method |
Sea freight (FCL/LCL), port-to-port, or door-to-door logistics available. |
|
Protection Measures |
Steel corner protection, edge reinforcement, waterproof wrapping, scratch-resistant film, and labeled components. |
|
FOB Port |
Qingdao (preferred), Shanghai, or other designated Chinese ports. |
